High power output tube KT120(Super KT88)

100W/ch(1KHz) at Pentode circuit (70W/ch at Triode).

Pentode/Triode selector switch

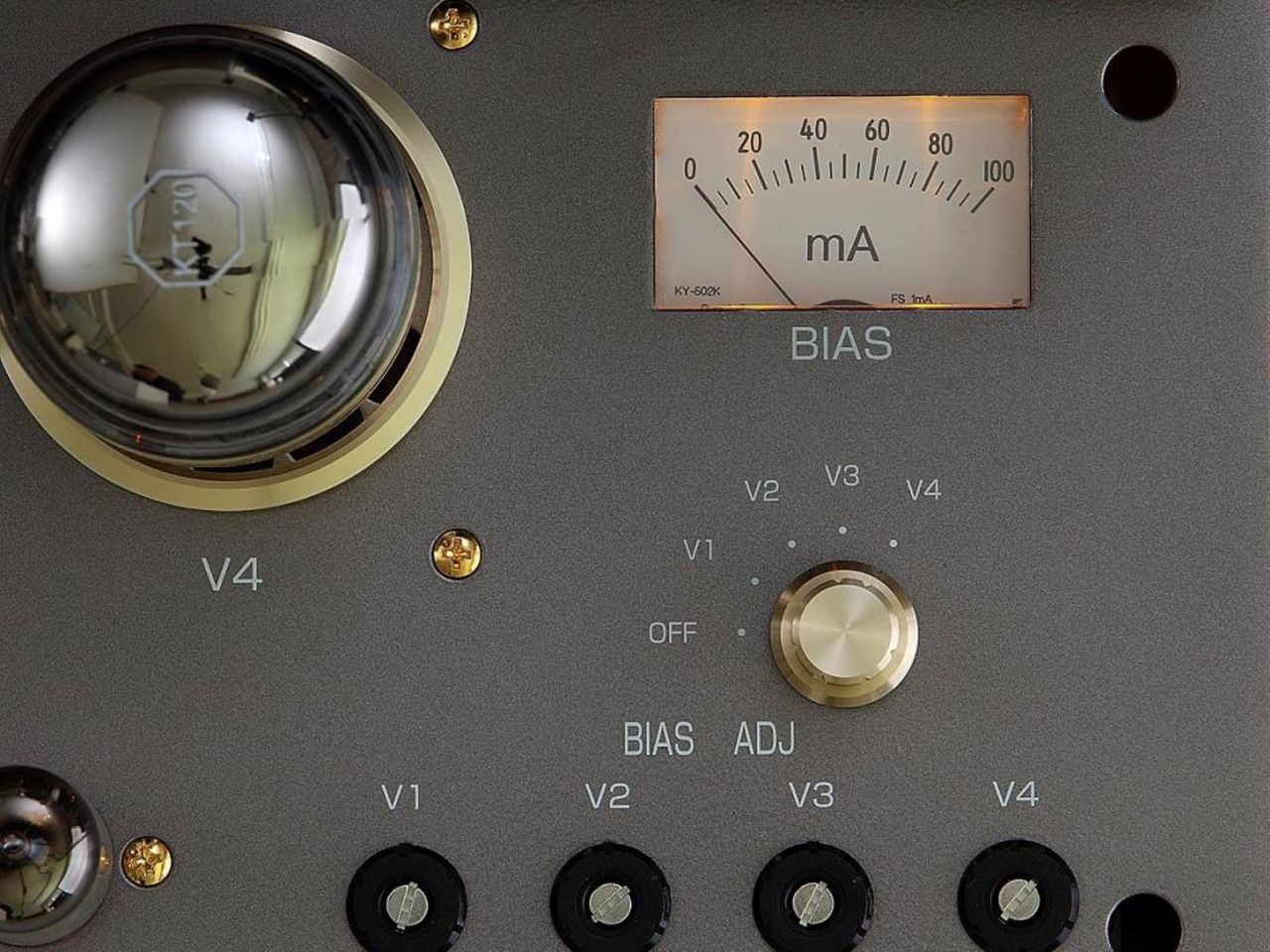

Bias adjustment with a Cathode-direct meter

Several type of output tubes are applicable by adjusting the cathodal electric current.

Newly developed Orient-core output transformer

A minimum loss and a Superior high-frequency response.

Flat and wide Frequency Response

A wide frequency response from 10Hz to 150KHz(-0dB) caters for digital audio formats such as SACD/HDCD.

High rigidity solid aluminum insulators

  • Super-high sensitivity bias meter made by a long-established manufacturer
  • High-grade Metal glaze resistorals of below 1% error margin
  • High-grade 41-steps Detent Volume of ALPS
  • TUBES COMPLIMENT:
    • KT120 x 4
    • 6922/6DJ8(ECC88) x 2
    • 6CG7/6FQ7 x 2
  • OUTPUT POWER: 100W x 2 at 1KHz
  • FREQUENCY RESPONSE: 10Hz - 150KHz. (-3dB)
  • INPUT SENSITIVITY: 0.4V at 50W
  • INPUT IMPEDANCE: 100K Ohms
  • OUTPUT IMPEDANCE: 4/6/8/16 Ohms (Selectable)
  • POWER CONSUMPTION:
  • WEIGHT: 23.5 Kgs
  • IMENSIONS: 455 (W) X 200 (H) X 335 (D) mm
  • ATTACHMENT: Detachable AC Power Cable x 1
